AUTOMATED PIPETTING SYSTEM

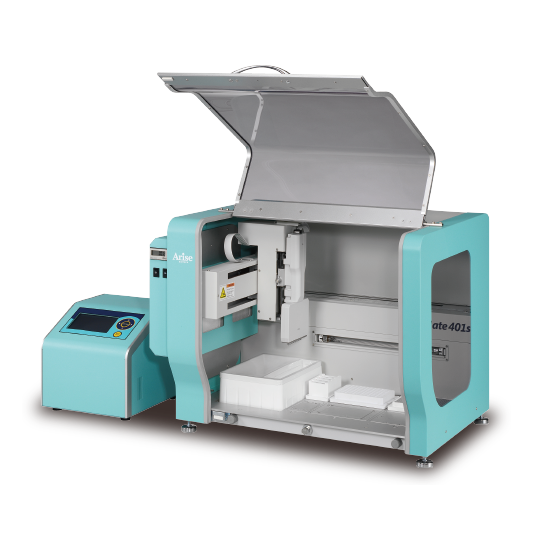

EzMate Automated Pipetting System
Your Dependable Liquid Handling Partner
EzMate automated pipetting system series is ideal for routine low volume pipetting, and helps eliminate tedious pipetting and human error, which enables more precise and standardized results to improve productivity. With highly-customized adapters and application-oriented software, EzMate can satisfy the various needs of assays, including PCR/qPCR set up, sample normalization, NGS preparation, and reagent kit manufacturing methods.
Features and Benefits
Simple Operation
● Easy-to-use system setup software without need of additional technical support
● Built-in automatic PCR/qPCR set-up protocols that support USB data transfer
High Flexibility and Capacity
● Single, 4- and 8-channel, 50µl or 200µl automated pipetting modules (APMs)
● 6 interchangeable standard microplate/tip rack adapters and 2 interchangeable reagent vessel adapters
● Active cooling and heating module (ACHM) options for sensitive samples/reagents
● UV lamp and HEPA filter meet the need of high-contamination assays
● Customized adapters support various types of labware
Excellent Serial Dilution Results
Excellent results for qPCR standard curve and replicates.
(Figure) A 10µl synthetic DNA sample is diluted in 30µl water at an 1:4 ratio. Roche® LightCycler® 480 real-time thermal cycler and Finnzyme DyNAmo® Flash SYBR® Green qPCR kit (F-415L) were used.
Better Precision than Manual Pipetting
Better precision and pipetting results than manual pipetting.
(Figure) Target: Human GAPDH (top curve) was amplified in replicates of 4. 18µl (master-mix) and 2µl (cDNA) were pipetted into a 20µl reaction volume. Roche LightCycler 480 real-time thermal cycler and Invitrogen Platinum Taq DNA Polymerase were used.
EzMate Automated Pipetting System
Your Dependable Liquid Handling Partner
EzMate automated pipetting system series is ideal for routine low volume pipetting, and helps eliminate tedious pipetting and human error, which enables more precise and standardized results to improve productivity. With highly-customized adapters and application-oriented software, EzMate can satisfy the various needs of assays, including PCR/qPCR set up, sample normalization, NGS preparation, and reagent kit manufacturing methods.
Features and Benefits
Simple Operation
● Easy-to-use system setup software without need of additional technical support
● Built-in automatic PCR/qPCR set-up protocols that support USB data transfer
High Flexibility and Capacity
● Single, 4- and 8-channel, 50µl or 200µl automated pipetting modules (APMs)
● 6 interchangeable standard microplate/tip rack adapters and 2 interchangeable reagent vessel adapters
● Active cooling and heating module (ACHM) options for sensitive samples/reagents
● UV lamp and HEPA filter meet the need of high-contamination assays
● Customized adapters support various types of labware
Excellent Serial Dilution Results
Excellent results for qPCR standard curve and replicates.
(Figure) A 10µl synthetic DNA sample is diluted in 30µl water at an 1:4 ratio. Roche® LightCycler® 480 real-time thermal cycler and Finnzyme DyNAmo® Flash SYBR® Green qPCR kit (F-415L) were used.
Better Precision than Manual Pipetting
Better precision and pipetting results than manual pipetting.
(Figure) Target: Human GAPDH (top curve) was amplified in replicates of 4. 18µl (master-mix) and 2µl (cDNA) were pipetted into a 20µl reaction volume. Roche LightCycler 480 real-time thermal cycler and Invitrogen Platinum Taq DNA Polymerase were used.
| Model | 401 | 601 | 401s | 601s |
| 4-position | 6-position | 4-position&UV/HEPA | 6-position&UV/HEPA | |
| Worktable Capacity | ||||
| SBS Format Area | 2 ~ 3 | 2 ~ 5 | 2 ~ 3 | 2 ~ 5 |
| Tip Rack Area | 1 ~ 2 | 1 ~ 4 | 1 ~ 2 | 1 ~ 4 |
| Reagent Area | 2 | 2 | 2 | 2 |
| Function | ||||
| Liquid (Sample / Reagent) Transfer (LT) | V | V | V | V |
| Multiple Dispense (MD) | V | V | V | V |
| Serial Dilution (SD) | V | V | V | V |
| Hold (Pause) | V | V | V | V |
| Mixing (MIX) | V | V | V | V |
| Loop | V | V | V | V |
| UV / HEPA | N/A | N/A | V | V |
| Active Cooling / Heating Module (ACHM) | N/A | N/A | Optional, up to 3 areas | Optional, up to 3 areas |
| Automated Pipetting Module | Interchangeable 1 / 4 / 8-channel, Maximum volume 50μl / 200μl | |||
| Connection | RS-232, USB 3.0 / 2.0 | |||
| Power Supply | 100~240V, 50 / 60 Hz, 100W | |||
| Size (W x D x H) | 590 x 450 x 470 mm | 740 x 450 x 470 mm | 660 x 450 x 490 mm | 810 x 450 x 490 mm |
| Weight (N.W.) | 25 kg | 29 kg | 31 kg | 35 kg |
| ACHM Control Box Size (W x D x H) | N/A | N/A | 240 x 300 x 230 mm | 240 x 300 x 230 mm |
| ACHM Control Box Weight (N.W.) | N/A | N/A | 2 kg | 2 kg |
