THERMAL CYCLER

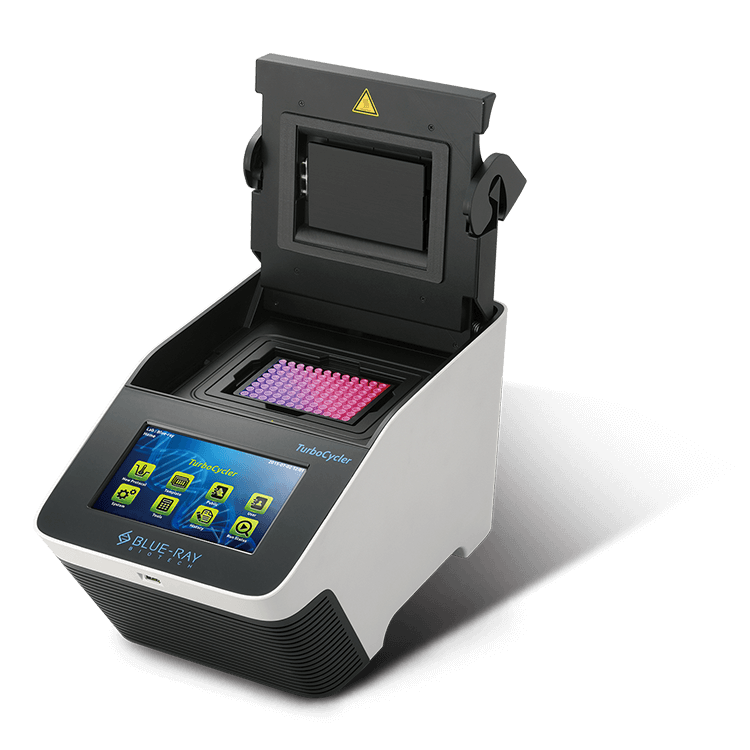

TurboCycler 2 Thermal Cycler
Enhancing PCR Efficiency and Accuracy
TurboCycler 2 thermal cycler is designed specifically to enhance PCR efficiency and accuracy. It is equipped with a 7” sensitive touchscreen and a friendly graphic user interface, which makes operation highly intuitive. With flexible ramp rate and gradient temperature control, TurboCycler 2 greatly increases PCR accurate optimization. The Wi-Fi function enables you to monitor the PCR run status anytime remotely with walk-away convenience.
Features and Benefits
Outstanding Performance
Flexible Ramp Rate Control
from 0.1 - 5.5 ℃/sec to meet the need for the CRISPR related assays .
Fully Adjustable Lid Temperature
can be set between 35 and 120 °C for virtually any type of experiment including NGS pre-treatment.
Gradient Optimization
range from 1 to 30 °C enables optimal experimental conditions in a single PCR run.
TurboCycler 2 Thermal Cycler
Enhancing PCR Efficiency and Accuracy
TurboCycler 2 thermal cycler is designed specifically to enhance PCR efficiency and accuracy. It is equipped with a 7” sensitive touchscreen and a friendly graphic user interface, which makes operation highly intuitive. With flexible ramp rate and gradient temperature control, TurboCycler 2 greatly increases PCR accurate optimization. The Wi-Fi function enables you to monitor the PCR run status anytime remotely with walk-away convenience.
Features and Benefits
Outstanding Performance
Flexible Ramp Rate Control
from 0.1 - 5.5 ℃/sec to meet the need for the CRISPR related assays .
Fully Adjustable Lid Temperature
can be set between 35 and 120 °C for virtually any type of experiment including NGS pre-treatment.
Gradient Optimization
range from 1 to 30 °C enables optimal experimental conditions in a single PCR run.
Sample Block
- 96 Well, Gradient Block
- Compatible with regular profile or low profile 0.2 ml PCR tube, strip, non-skirted, semi-skirted and full-skirted 96-well plate
Block Temperature
- Block Temperature Range
- 4.0 - 100 °C
- Max. Heating Rate
- 5.5 °C/sec
- Max. Cooling Rate
- 3.3 °C/sec
- Temperature Accuracy
- +/- 0.3 °C
- Temperature Uniformity Across Block
- +/- 0.3 °C
- Adjustable Ramp Rate
- 0.1 - 5.5 °C/sec
Gradient Temperature
- Gradient Direction
- Horizontal across the block
- Gradient Temperature Range
- 30 - 100 °C
- Gradient Temperature Difference
- Max. span 30 °C
Heater Lid
- Temperature Setting Range
- 35 - 120 °C or off
- Temperature Accuracy
- +/- 1.0 °C
Software
- Portability of Protocols
- Save and transfer to computer or TurboCycler 2 via USB flash drive
- Stored Program No.
- > 4000 sets
- Registered User Folder No.
- 100 sets
- User Folder Password Protection
- Yes
- Run Status Report
- Yes, HTML output and transfer via USB flash drive
- Real-time Temp. Profile Export
- Yes, CSV output and transfer via USB flash drive
- Tools
- Tm calculator, Copy number convertor, Master mix preparation wizard
General
- Display
- 7” color LCD with capacitive touch panel
- Data Port
- 1 USB Type-A front port for USB flash drive
- Heated Lid
- 35 - 120 °C or off
- Auto Restart after Power Outage
- Yes
- Remote Monitoring via Wi-Fi
- Optional
- Footprint Dimensions (H x W x D)
- 225 mm x 245 mm x 415 mm
- Weight
- 9.5 kg
- Power Supply
- AC 100-240 V, 50/60 Hz, 750 W
- Certification
- CE, RoHS
* Specifications are subject to change without prior notice.
