FLUOROMETER

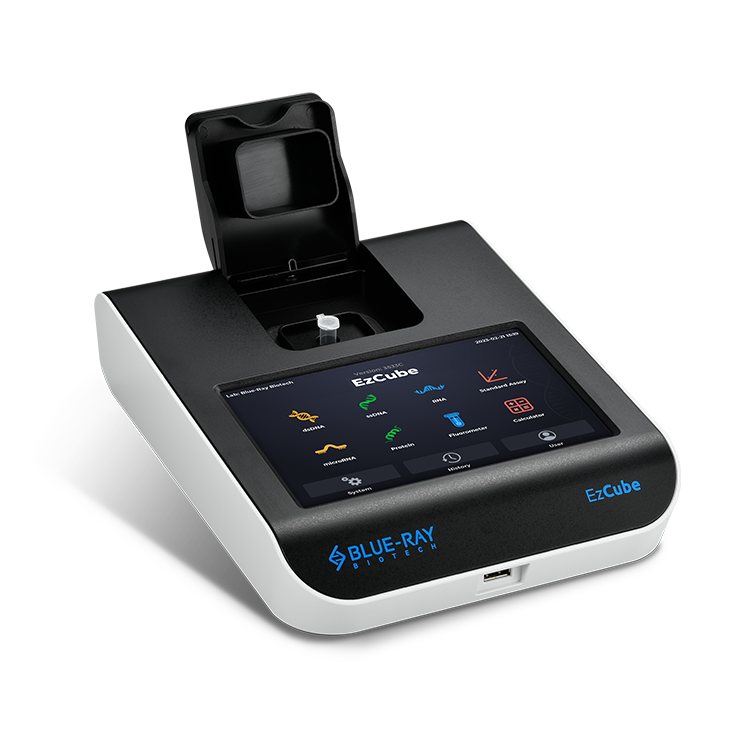

EzCube Fluorometer
Illuminating Precision with Triple Fluorescent Channels
EzCube Fluorometer features triple fluorescent channels and offers high-sensitivity and specific quantification of nucleic acids and proteins. It accurately measures low concentration samples as small as 1 µl, making it ideal for demanding applications, including NGS. Combined with dedicated EzQuant quantification assays, an intuitive touchscreen and USB connectivity, EzCube simplifies your precision quantification processes and makes them easy.
Features and Benefits
Features Highlights
Enhanced Accuracy and Sensitivity
Quantify low concentrations of DNA, RNA and protein with just 1 µl in seconds, more sensitive than UV absorbance measurements.
Three Fluoresent Channels
Expand your application range with triple-channel detection.
Easy Operation
Seamlessly control your workflow with an intuitive 7-inch touchscreen and a built-in reagent calculator.
Flexible Data Management
USB connectivity for easy data export.
High Compatibility with Quantification Assays
EzCube fluorometer works with EzQuant quantification assays and other commonly used options.
Three Fluorescent Channels
Expand your application range with triple-channel detection.
Light Sources
- Blue LED (max ~480 nm)
- Red LED (max ~630 nm)
- Green LED (max ~535 nm)
Easy Operation
Seamlessly control your workflow with an intuitive 7-inch touchscreen and a built-in reagent calculator.
High Compatibility with Quantification Assays
EzCube fluorometer works with EzQuant quantification assays and other commonly used options.
- 1X dsDNA HS (High-Sensitivity)
- ssDNA
- RNA HS (High-Sensitivity)

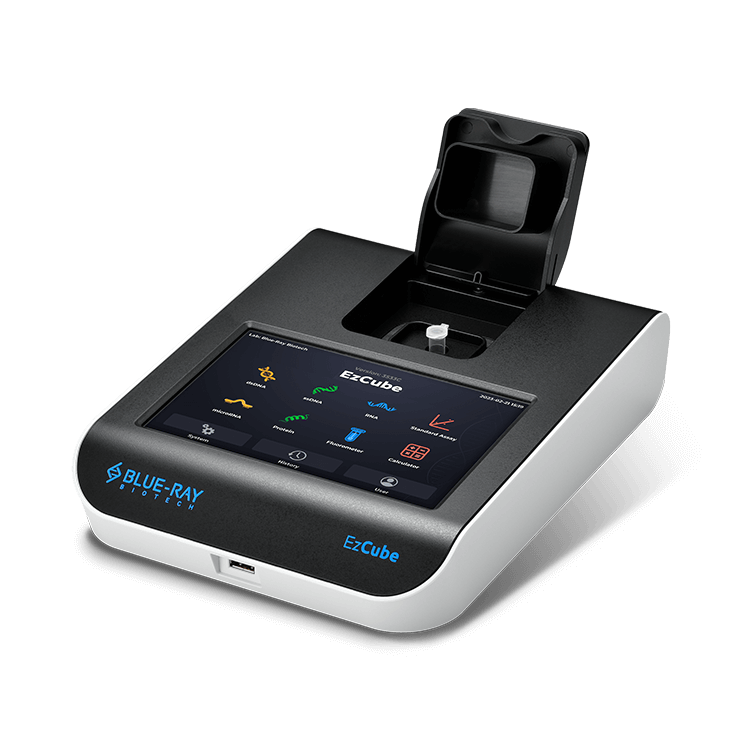

EzCube Fluorometer
Illuminating Precision with Triple Fluorescent Channels
EzCube Fluorometer features triple fluorescent channels and offers high-sensitivity and specific quantification of nucleic acids and proteins. It accurately measures low concentration samples as small as 1 µl, making it ideal for demanding applications, including NGS. Combined with dedicated EzQuant quantification assays, an intuitive touchscreen and USB connectivity, EzCube simplifies your precision quantification processes and makes them easy.
Features and Benefits
Features Highlights
Enhanced Accuracy and Sensitivity
Quantify low concentrations of DNA, RNA and protein with just 1 µl in seconds, more sensitive than UV absorbance measurements.
Three Fluoresent Channels
Expand your application range with triple-channel detection.
Easy Operation
Seamlessly control your workflow with an intuitive 7-inch touchscreen and a built-in reagent calculator.
Flexible Data Management
USB connectivity for easy data export.
High Compatibility with Quantification Assays
EzCube fluorometer works with EzQuant quantification assays and other commonly used options.
Three Fluorescent Channels
Expand your application range with triple-channel detection.
Light Sources
- Blue LED (max ~480 nm)
- Red LED (max ~630 nm)
- Green LED (max ~535 nm)
Easy Operation
Seamlessly control your workflow with an intuitive 7-inch touchscreen and a built-in reagent calculator.
High Compatibility with Quantification Assays
EzCube fluorometer works with EzQuant quantification assays and other commonly used options.
- 1X dsDNA HS (High-Sensitivity)
- ssDNA
- RNA HS (High-Sensitivity)
- Dynamic Range
- 5 orders of magnitude
- Light Sources
Blue LED (max ~480 nm)
Red LED (max ~630 nm)
- Green LED (max ~535 nm)
- Excitation Filters
Blue (430 - 495 nm)
Red (600 - 645 nm)
- Green (490 - 535 nm)
- Emission Filters
Blue (510 - 580 nm)
Red (665 - 720 nm)
Green (564 - 650 nm)
- Detectors
- Photodiodes; measurement capability from 320 -1,100 nm
- Tube Type
- 0.5 ml polypropylene thin wall PCR tubes
- Operating System
- Custom Linux based OS
- Display
- 7” touch screen, 1,280*800 TFT-LCD
- Connectivity
- USB-A port x2 (Data output)
- Dimensions (W x D x H)
- 196 mm x 248 mm x 68 mm (7.7 x 9.8 x 3.4 in.)
- Weight
- 1 kg (2.2 lb.)
- Glove Compatibility
- All common lab gloves
- Internal Storage
- 32 GB flash memory
- Operating Voltage
Input: AC 100 - 240 V, 50/60 Hz;
- Output: DC 12 V, 3 A
- Certifications
- CE
* Specifications are subject to change without prior notice.
