HEATED CIRCULATORS AND STIRRERS

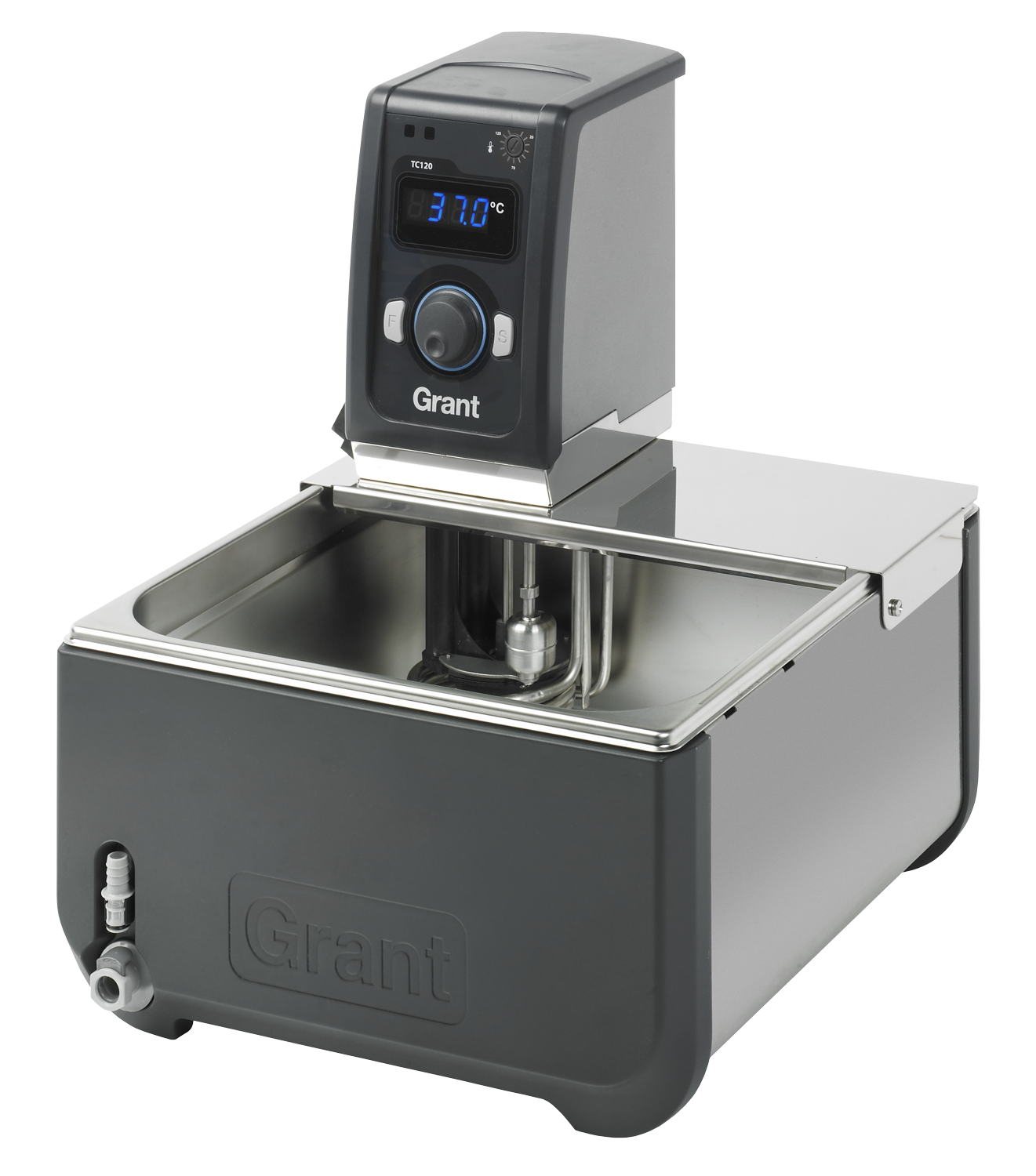

The Grant TC series of digital heating circulating baths for general applications requiring precision temperature control in the range of -15°C to 120°C.
Applications
- Clinical, Microbiology and Pathology labs – media tempering, thawing and incubating samples
- University research – temperature control of spectrophotometers and refractometers and jacketed vessells
- Industrial labs – temperature probe calibration, water analysis, QC testing product, petrochemical testing, material testing, milk sample testing
The TCSERIES heating circulator can be used in combination with any Grant stainless steel or with a T-Clamp for independent use of virtually any vertical sided tank.
- Cooling/heating range -15°C to 120°C
- Cooling achievable with optional immersion cooler (see accessory options)
- Stability ±0.05ºC / Uniformity ±0.1ºC
- Tank options 5L to 38L
- Simple, intuitive user interface: dial and two function buttons
- 3 programmable temperature presets
- Clear, bright 4 digit LED display
- Low level protection and adjustable over temperature cut out
- Countdown timer with audible alarm
SHARE
Enquiry Now
The Grant TC series of digital heating circulating baths for general applications requiring precision temperature control in the range of -15°C to 120°C.
Applications
- Clinical, Microbiology and Pathology labs – media tempering, thawing and incubating samples
- University research – temperature control of spectrophotometers and refractometers and jacketed vessells
- Industrial labs – temperature probe calibration, water analysis, QC testing product, petrochemical testing, material testing, milk sample testing
The TCSERIES heating circulator can be used in combination with any Grant stainless steel or with a T-Clamp for independent use of virtually any vertical sided tank.
- Cooling/heating range -15°C to 120°C
- Cooling achievable with optional immersion cooler (see accessory options)
- Stability ±0.05ºC / Uniformity ±0.1ºC
- Tank options 5L to 38L
- Simple, intuitive user interface: dial and two function buttons
- 3 programmable temperature presets
- Clear, bright 4 digit LED display
- Low level protection and adjustable over temperature cut out
- Countdown timer with audible alarm
| Dimensions (h x d x w) | 333 x 172 x 141mm |
| Stability (DIN 12876) @70ºC | 0.05±ºC |
| Uniformity (DIN 12876) @70ºC | 0.1±ºC |
| Setting resolution | 0.1ºC |
| Display | 4 digit LED |
| Timer function | 1 minutes to 99 hours 59 minutes |
| No. of temperature presets | 3 |
| Re-calibration points | 2 |
| Socket for external probe (TXPEP, TXSEP) | – |
| Programmable | – |
| Relays | – |
| Safety – over temperature | Adjustable cut-out |
| Fluid level – float | • |
| Language options | – |
| Alarms (can be configured to switch a relay) | High (no relay) |
| Heater power – 230V | 1290W |
| Heater power – 120V1440W | 1440W |
| Electrical power – 230V | 1400 (50-60Hz) |
| Electrical power – 120V | 1500 (50-60Hz) |
| Height above tank rim | 20mm |
| Depth below tank rim | 135mm |
| Maximum pressure (water) | 210mbar |
| Maximum flow (water) | 16L/min |
| Pump connector 6mm bore | Fits 9mm inner diameter tubing |
| Pump connector 11mm bore | Fits 15mm inner diameter tubing |
| Weight | 2.3kg |
